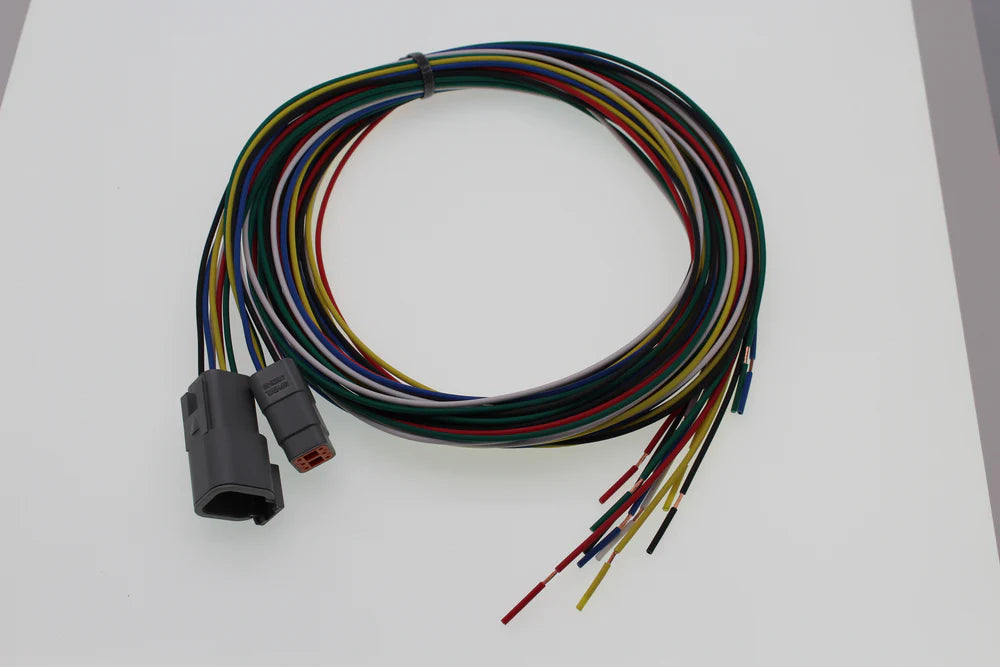

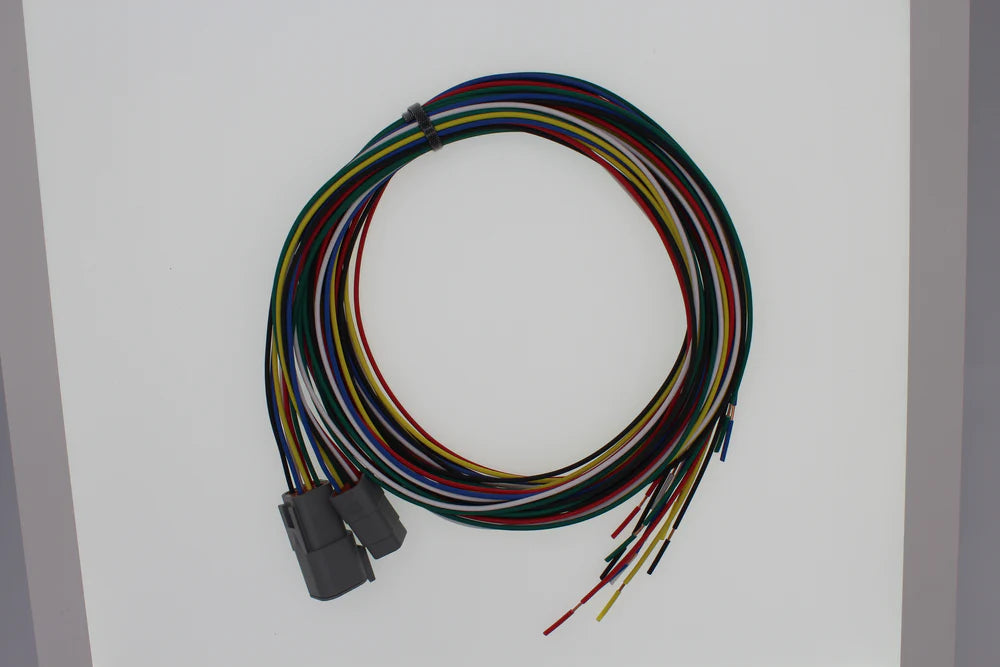

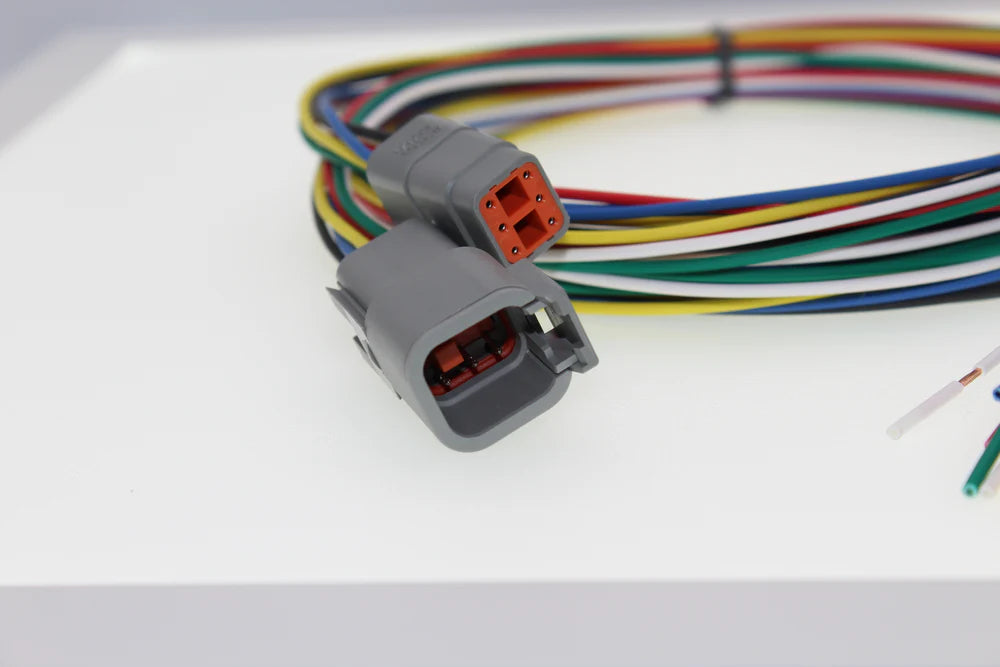

HF-06 - Deutsch DTM, 18 AWG TXL

HF-06 - Deutsch DTM, 18 AWG TXL

Regular price $48.06 USD
Regular price Sale price $48.06 USD
Sale Sold out

Deutsch DTM Series

Overview

Deutsch DTM mini connectors we have come to respect so much with field proven quality. A favorite choice for racers and car builders due to their sealed and durable reliability. Ideal for engine compartments, chassis, harsh environments where dust, dirt, humidity, salt-spray and off-road use are major concerns. Able to withstand high-pressure, high-temperature washdown.

The DTM (Mini) series (our HF Series) is the lightest of the three DT styles being the answer to all of your smaller wire gauge and low current load applications. This connector system is available in 2, 3, 4, 6, 8, and 12 circuit configurations with integral locking latches and hermetic, silicone seals at both connector ends and at the internal mating point.

Wired for DC only applications up to 50 volts with TXL, (extra thin wall) 18AWG, cross linked automotive grade wire offering all the protection of high-grade automotive wire but at a fraction of the weight. Insulation has smooth surface finish, resistant to gasoline, oil, grease, coolant, most acids and solvents. Wire is multicolored for easy installation.

Connector Specification:

  • Deutsch
  • Connector Series = DTM
  • Circuit Count = 6
  • Color = Grey
  • Material = Thermoplastic
  • Sealed = Yes, Silicone Elastomer

Wire Specifications:

  • 18 AWG
  • 50 VDC, 125 degrees C
  • Stranded, Bare Copper
  • SAE Type = SAE-J1128 TXL
  • Standard Wall TXL Automotive Cross-Link
  • Wire Length = 72" both ends
  • Free ends are stripped 0.6" with slugs left on to protect wire strands

Contacts:

  • Copper Alloy, Nickel Plated
  • Male contacts in Receptacle
  • Female contacts in Plug

Ratings

  • 50 VDC, 7.5 Amp MAX *
  • Max Temp 125 Deg C

 * Total MAX current will be dependent on the total wire length and gauge of wire used in the entire circuit. As wire length and wire gauge decrease, current capacity will decrease.  Total wire length is the distance that the wire will travel from the source to the load (through the connector kit) plus the length of the return lines.

Wire color configuration by pin number location: (Same for both connector ends)

  1. Red
  2. White
  3. Black
  4. Blue
  5. Yellow
  6. Green
